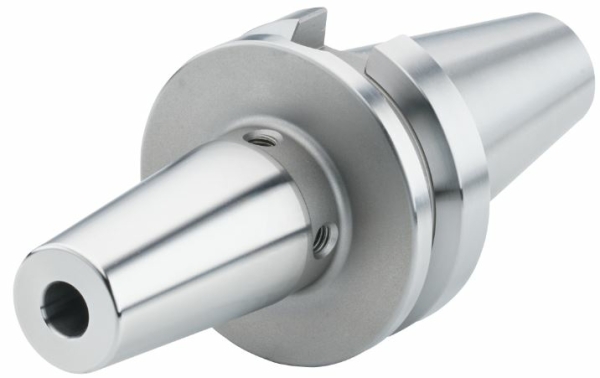

Schüssler Schrumpffutter, 4,5 Grad, MAS BT 50, ISO 7388-2, JIS B 6339, Form AD/B, G2,5 bei 25.000 1/min

Artikelnummer: 201880

Kategorie: Schrumpffutter

Durchmesser
Länge Maß A

ab 184,00 €

exkl. 20% USt. , versandfreie Lieferung

sofort verfügbar

Dieses Produkt hat Variationen. Wählen Sie bitte die gewünschte Variation aus.


Ausführung:

  • Zum Spannen von Werkzeugen mit Zylinderschaft aus Hartmetall oder HSS. Schafttoleranz h6.
  • Rundlaufabweichung: max. 0,003 mm

Lieferumfang:

  • 1 Werkzeugaufnahme
  • 1 eingebaute Längeneinstellschraube

Abmessungen:

Artikel Nr. BT D1 A D2 D3 V L M
201880 6x100 BT50 6,0 mm 100,0 mm 21,0 mm 27,0 mm 10,0 mm 37,0 mm M5
201880 8x100 BT50 8,0 mm 100,0 mm 21,0 mm 27,0 mm 10,0 mm 37,0 mm M6
201880 10x100 BT50 10,0 mm 100,0 mm 24,0 mm 32,0 mm 10,0 mm 42,0 mm M8x1
201880 12x100 BT50 12,0 mm 100,0 mm 24,0 mm 32,0 mm 10,0 mm 48,0 mm M10x1
201880 14x100 BT50 14,0 mm 100,0 mm 27,0 mm 34,0 mm 10,0 mm 48,0 mm M10x1
201880 16x100 BT50 16,0 mm 100,0 mm 27,0 mm 34,0 mm 10,0 mm 51,0 mm M12x1
201880 18x100 BT50 18,0 mm 100,0 mm 33,0 mm 42,0 mm 10,0 mm 51,0 mm M12x1
201880 20x100 BT50 20,0 mm 100,0 mm 33,0 mm 42,0 mm 10,0 mm 53,0 mm M16x1
201880 25x100 BT50 25,0 mm 100,0 mm 44,0 mm 53,0 mm 10,0 mm 59,0 mm M16x1
201880 32x100 BT50 32,0 mm 100,0 mm 44,0 mm 53,0 mm 10,0 mm 63,0 mm M16x1
201880 6x130 BT50 6,0 mm 130,0 mm 21,0 mm 27,0 mm 10,0 mm 37,0 mm M5
201880 8x130 BT50 8,0 mm 130,0 mm 21,0 mm 27,0 mm 10,0 mm 37,0 mm M6
201880 10x130 BT50 10,0 mm 130,0 mm 24,0 mm 32,0 mm 10,0 mm 42,0 mm M8x1
201880 12x130 BT50 12,0 mm 130,0 mm 24,0 mm 32,0 mm 10,0 mm 48,0 mm M10x1
201880 14x130 BT50 14,0 mm 130,0 mm 27,0 mm 34,0 mm 10,0 mm 48,0 mm M10x1
201880 16x130 BT50 16,0 mm 130,0 mm 27,0 mm 34,0 mm 10,0 mm 51,0 mm M12x1
201880 18x130 BT50 18,0 mm 130,0 mm 33,0 mm 42,0 mm 10,0 mm 51,0 mm M12x1
201880 20x130 BT50 20,0 mm 130,0 mm 33,0 mm 42,0 mm 10,0 mm 53,0 mm M16x1
201880 25x130 BT50 25,0 mm 130,0 mm 44,0 mm 53,0 mm 10,0 mm 59,0 mm M16x1
201880 32x130 BT50 32,0 mm 130,0 mm 44,0 mm 53,0 mm 10,0 mm 63,0 mm M16x1
201880 6x160 BT50 6,0 mm 160,0 mm 21,0 mm 27,0 mm 10,0 mm 37,0 mm M5
201880 8x160 BT50 8,0 mm 160,0 mm 21,0 mm 27,0 mm 10,0 mm 37,0 mm M6
201880 10x160 BT50 10,0 mm 160,0 mm 24,0 mm 32,0 mm 10,0 mm 42,0 mm M8x1
201880 12x160 BT50 12,0 mm 160,0 mm 24,0 mm 32,0 mm 10,0 mm 48,0 mm M10x1
201880 14x160 BT50 14,0 mm 160,0 mm 27,0 mm 34,0 mm 10,0 mm 48,0 mm M10x1
201880 16x160 BT50 16,0 mm 160,0 mm 27,0 mm 34,0 mm 10,0 mm 51,0 mm M12x1
201880 18x160 BT50 18,0 mm 160,0 mm 33,0 mm 42,0 mm 10,0 mm 51,0 mm M12x1
201880 20x160 BT50 20,0 mm 160,0 mm 33,0 mm 42,0 mm 10,0 mm 53,0 mm M16x1
201880 25x160 BT50 25,0 mm 160,0 mm 44,0 mm 53,0 mm 10,0 mm 59,0 mm M16x1
201880 32x160 BT50 32,0 mm 160,0 mm 44,0 mm 53,0 mm 10,0 mm 63,0 mm M16x1
201880 6x200 BT50 6,0 mm 200,0 mm 21,0 mm 27,0 mm 10,0 mm 37,0 mm M5
201880 8x200 BT50 8,0 mm 200,0 mm 21,0 mm 27,0 mm 10,0 mm 37,0 mm M6
201880 10x200 BT50 10,0 mm 200,0 mm 24,0 mm 32,0 mm 10,0 mm 42,0 mm M8x1
201880 12x200 BT50 12,0 mm 200,0 mm 24,0 mm 32,0 mm 10,0 mm 48,0 mm M10x1
201880 14x200 BT50 14,0 mm 200,0 mm 27,0 mm 34,0 mm 10,0 mm 48,0 mm M10x1
201880 16x200 BT50 16,0 mm 200,0 mm 27,0 mm 34,0 mm 10,0 mm 51,0 mm M12x1
201880 18x200 BT50 18,0 mm 200,0 mm 33,0 mm 42,0 mm 10,0 mm 51,0 mm M12x1
201880 20x200 BT50 20,0 mm 200,0 mm 33,0 mm 42,0 mm 10,0 mm 53,0 mm M16x1
201880 25x200 BT50 25,0 mm 200,0 mm 44,0 mm 53,0 mm 10,0 mm 59,0 mm M16x1
201880 32x200 BT50 32,0 mm 200,0 mm 44,0 mm 53,0 mm 10,0 mm 63,0 mm M16x1

Aufnahmen-Typ: Schrumpffutter
Qualitätsklasse: Premium
Schnittstelle: BT 50 JIS B 6339 (MAS 403 BT)
Wuchtgüte: G2,5 bei 25000 1/min
Form: Form AD/B
Inhalt: 1,00 Stück
