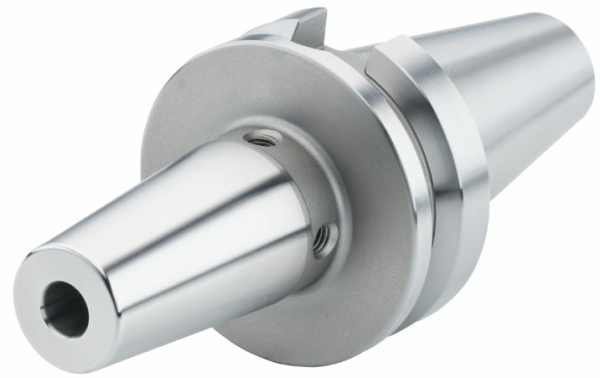

Schüssler Schrumpffutter, 4,5 Grad, MAS BT 40, ISO 7388-2, JIS B 6339, Form AD/B, G2,5 bei 25.000 1/min

Artikelnummer: 201870

Kategorie: Steilkegel JIS B 6339 - MAS BT

Durchmesser
Länge Maß A

ab 106,52 €

exkl. 20% USt., zzgl. Versand

sofort verfügbar

Dieses Produkt hat Variationen. Wählen Sie bitte die gewünschte Variation aus.


Beschreibung

Ausführung:

  • Zum Spannen von Werkzeugen mit Zylinderschaft aus Hartmetall oder HSS. Schafttoleranz h6.
  • Rundlaufabweichung: max. 0,003 mm

Lieferumfang:

  • 1 Werkzeugaufnahme
  • 1 eingebaute Längeneinstellschraube

Abmessungen:

Artikel Nr. BT D1 A D2 D3 V L M
201870 3x90 BT40 3,0 mm 90,0 mm 12,0 mm 17,0 mm - - -
201870 4x90 BT40 4,0 mm 90,0 mm 12,0 mm 17,0 mm - - -
201870 5x90 BT40 5,0 mm 90,0 mm 12,0 mm 17,0 mm - - -
201870 6x90 BT40 6,0 mm 90,0 mm 21,0 mm 27,0 mm 10,0 mm 37,0 mm M5
201870 8x90 BT40 8,0 mm 90,0 mm 21,0 mm 27,0 mm 10,0 mm 37,0 mm M6
201870 10x90 BT40 10,0 mm 90,0 mm 24,0 mm 32,0 mm 10,0 mm 42,0 mm M8x1
201870 12x90 BT40 12,0 mm 90,0 mm 24,0 mm 32,0 mm 10,0 mm 48,0 mm M10x1
201870 14x90 BT40 14,0 mm 90,0 mm 27,0 mm 34,0 mm 10,0 mm 48,0 mm M10x1
201870 16x90 BT40 16,0 mm 90,0 mm 27,0 mm 34,0 mm 10,0 mm 51,0 mm M12x1
201870 18x90 BT40 18,0 mm 90,0 mm 33,0 mm 42,0 mm 10,0 mm 51,0 mm M12x1
201870 20x90 BT40 20,0 mm 90,0 mm 33,0 mm 42,0 mm 10,0 mm 53,0 mm M16x1
201870 25x100 BT40 25,0 mm 100,0 mm 44,0 mm 53,0 mm 10,0 mm 59,0 mm M16x1
201870 6x120 BT40 6,0 mm 120,0 mm 21,0 mm 27,0 mm 10,0 mm 37,0 mm M5
201870 8x120 BT40 8,0 mm 120,0 mm 21,0 mm 27,0 mm 10,0 mm 37,0 mm M6
201870 10x120 BT40 10,0 mm 120,0 mm 24,0 mm 32,0 mm 10,0 mm 42,0 mm M8x1
201870 12x120 BT40 12,0 mm 120,0 mm 24,0 mm 32,0 mm 10,0 mm 48,0 mm M10x1
201870 14x120 BT40 14,0 mm 120,0 mm 27,0 mm 34,0 mm 10,0 mm 48,0 mm M10x1
201870 16x120 BT40 16,0 mm 120,0 mm 27,0 mm 34,0 mm 10,0 mm 51,0 mm M12x1
201870 18x120 BT40 18,0 mm 120,0 mm 33,0 mm 42,0 mm 10,0 mm 51,0 mm M12x1
200870 20x120 BT40 20,0 mm 120,0 mm 33,0 mm 42,0 mm 10,0 mm 53,0 mm M16x1
201870 25x120 BT40 25,0 mm 120,0 mm 44,0 mm 53,0 mm 10,0 mm 59,0 mm M16x1
201870 6x130 BT40 6,0 mm 130,0 mm 21,0 mm 27,0 mm 10,0 mm 37,0 mm M5
201870 8x130 BT40 8,0 mm 130,0 mm 21,0 mm 27,0 mm 10,0 mm 37,0 mm M6
201870 10x130 BT40 10,0 mm 130,0 mm 24,0 mm 32,0 mm 10,0 mm 42,0 mm M8x1
201870 12x130 BT40 12,0 mm 130,0 mm 24,0 mm 32,0 mm 10,0 mm 48,0 mm M10x1
201870 14x130 BT40 14,0 mm 130,0 mm 27,0 mm 34,0 mm 10,0 mm 48,0 mm M10x1
201870 16x130 BT40 16,0 mm 130,0 mm 27,0 mm 34,0 mm 10,0 mm 51,0 mm M12x1
201870 18x130 BT40 18,0 mm 130,0 mm 33,0 mm 42,0 mm 10,0 mm 51,0 mm M12x1
201870 20x130 BT40 20,0 mm 130,0 mm 33,0 mm 42,0 mm 10,0 mm 53,0 mm M16x1
201870 25x130 BT40 25,0 mm 130,0 mm 44,0 mm 53,0 mm 10,0 mm 59,0 mm M16x1
201870 6x160 BT40 6,0 mm 160,0 mm 21,0 mm 27,0 mm 10,0 mm 37,0 mm M5
201870 8x160 BT40 8,0 mm 160,0 mm 21,0 mm 27,0 mm 10,0 mm 37,0 mm M6
201870 10x160 BT40 10,0 mm 160,0 mm 24,0 mm 32,0 mm 10,0 mm 42,0 mm M8x1
201870 12x160 BT40 12,0 mm 160,0 mm 24,0 mm 32,0 mm 10,0 mm 48,0 mm M10x1
201870 14x160 BT40 14,0 mm 160,0 mm 27,0 mm 34,0 mm 10,0 mm 48,0 mm M10x1
201870 16x160 BT40 16,0 mm 160,0 mm 27,0 mm 34,0 mm 10,0 mm 51,0 mm M12x1
201870 18x160 BT40 18,0 mm 160,0 mm 33,0 mm 42,0 mm 10,0 mm 51,0 mm M12x1
201870 20x160 BT40 20,0 mm 160,0 mm 33,0 mm 42,0 mm 10,0 mm 53,0 mm M16x1
201870 25x160 BT40 25,0 mm 160,0 mm 44,0 mm 53,0 mm 10,0 mm 59,0 mm M16x1
201870 6x200 BT40 6,0 mm 200,0 mm 21,0 mm 27,0 mm 10,0 mm 37,0 mm M5
201870 8x200 BT40 8,0 mm 200,0 mm 21,0 mm 27,0 mm 10,0 mm 37,0 mm M6
201870 10x200 BT40 10,0 mm 200,0 mm 24,0 mm 32,0 mm 10,0 mm 42,0 mm M8x1
201870 12x200 BT40 12,0 mm 200,0 mm 24,0 mm 32,0 mm 10,0 mm 48,0 mm M10x1
201870 14x200 BT40 14,0 mm 200,0 mm 27,0 mm 34,0 mm 10,0 mm 48,0 mm M10x1
201870 16x200 BT40 16,0 mm 200,0 mm 27,0 mm 34,0 mm 10,0 mm 51,0 mm M12x1
201870 18x200 BT40 18,0 mm 200,0 mm 33,0 mm 42,0 mm 10,0 mm 51,0 mm M12x1
201870 20x200 BT40 20,0 mm 200,0 mm 33,0 mm 42,0 mm 10,0 mm 53,0 mm M16x1
201870 25x200 BT40 25,0 mm 200,0 mm 44,0 mm 53,0 mm 10,0 mm 59,0 mm M16x1

Aufnahmen-Typ: Schrumpffutter
Qualitätsklasse: Premium
Schnittstelle: BT 40 JIS B 6339 (MAS 403 BT)
Wuchtgüte: G2,5 bei 25000 1/min
Form: Form AD/B
Inhalt: 1,00 Stück
