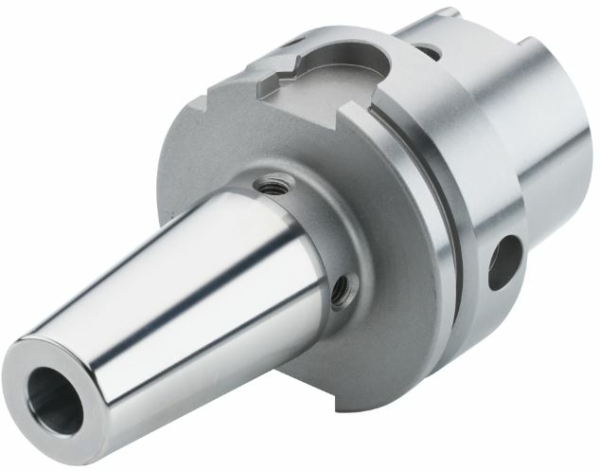

Schüssler Schrumpffutter 4,5 Grad, HSK-A 63, DIN 69893, G2,5 bei 25.000 1/min

Artikelnummer: 203560
Kategorie: Schrumpffutter
Hersteller: Schüssler

Durchmesser
Länge Maß A

139,00 €

exkl. 20% USt. , zzgl.

Lieferbar

Dieser Artikel hat Variationen. Wählen Sie bitte die gewünschte Variation aus.

Beschreibung
Bewertungen

Ausführung:

Zur Aufnahme von Werkzeugen mit Zylinderschaft aus Hartmetall oder HSS. Schafttoleranz h6.
Aus speziellem, warmfesten Werkzeugstahl.
Geeignet für induktive Schrumpfgeräte.
Mit vier zusätzlichen Gewinden am Umfang zum nachträglichen Feinwuchten.
Rundlaufabweichung: max. 0,003 mm

Lieferumfang:

1 Werkzeugaufnahme
1 eingebaute Längeneinstellschraube

Abmessungen:

Artikel Nr.	HSK	D1	A	D2	D3	V	L	M
203560 3x80	HSK 63	3,0 mm	80,0 mm	12,0 mm	17,0 mm	-	-	-
203560 4x80	HSK 63	4,0 mm	80,0 mm	12,0 mm	17,0 mm	-	-	-
203560 5x80	HSK 63	5,0 mm	80,0 mm	12,0 mm	17,0 mm	-	-	-
203560 6x80	HSK 63	6,0 mm	80,0 mm	21,0 mm	27,0 mm	10,0 mm	37,0 mm	M5
203560 8x80	HSK 63	8,0 mm	80,0 mm	21,0 mm	27,0 mm	10,0 mm	37,0 mm	M6
203560 10x85	HSK 63	10,0 mm	85,0 mm	24,0 mm	32,0 mm	10,0 mm	42,0 mm	M8x1
203560 12x90	HSK 63	12,0 mm	90,0 mm	24,0 mm	32,0 mm	10,0 mm	48,0 mm	M10x1
203560 14x90	HSK 63	14,0 mm	90,0 mm	27,0 mm	34,0 mm	10,0 mm	48,0 mm	M10x1
203560 16x95	HSK 63	16,0 mm	95,0 mm	27,0 mm	34,0 mm	10,0 mm	51,0 mm	M12x1
203560 18x95	HSK 63	18,0 mm	95,0 mm	33,0 mm	42,0 mm	10,0 mm	51,0 mm	M12x1
203560 20x100	HSK 63	20,0 mm	100,0 mm	33,0 mm	42,0 mm	10,0 mm	53,0 mm	M16x1
203560 25x115	HSK 63	25,0 mm	115,0 mm	44,0 mm	53,0 mm	10,0 mm	59,0 mm	M16x1
203560 32x120	HSK 63	32,0 mm	120,0 mm	44,0 mm	53,0 mm	10,0 mm	63,0 mm	M16x1
203560 3x120	HSK 63	3,0 mm	120,0 mm	12,0 mm	17,0 mm	-	-	-
203560 4x120	HSK 63	4,0 mm	120,0 mm	12,0 mm	17,0 mm	-	-	-
203560 5x120	HSK 63	5,0 mm	120,0 mm	12,0 mm	17,0 mm	-	-	-
203560 6x120	HSK 63	6,0 mm	120,0 mm	21,0 mm	27,0 mm	10,0 mm	37,0 mm	M5
203560 8x120	HSK 63	8,0 mm	120,0 mm	21,0 mm	27,0 mm	10,0 mm	37,0 mm	M6
203560 10x120	HSK 63	10,0 mm	120,0 mm	24,0 mm	32,0 mm	10,0 mm	42,0 mm	M8x1
203560 12x120	HSK 63	12,0 mm	120,0 mm	24,0 mm	32,0 mm	10,0 mm	48,0 mm	M10x1
203560 14x120	HSK 63	14,0 mm	120,0 mm	27,0 mm	34,0 mm	10,0 mm	48,0 mm	M10x1
203560 16x120	HSK 63	16,0 mm	120,0 mm	27,0 mm	34,0 mm	10,0 mm	51,0 mm	M12x1
203560 18x120	HSK 63	18,0 mm	120,0 mm	33,0 mm	42,0 mm	10,0 mm	51,0 mm	M12x1
203560 20x120	HSK 63	20,0 mm	120,0 mm	33,0 mm	42,0 mm	10,0 mm	53,0 mm	M16x1
203560 3x130	HSK 63	3,0 mm	130,0 mm	12,0 mm	17,0 mm	-	-	-
203560 4x130	HSK 63	4,0 mm	130,0 mm	12,0 mm	17,0 mm	-	-	-
203560 5x130	HSK 63	5,0 mm	130,0 mm	12,0 mm	17,0 mm	-	-	-
203560 6x130	HSK 63	6,0 mm	130,0 mm	21,0 mm	27,0 mm	10,0 mm	37,0 mm	M5
203560 8x130	HSK 63	8,0 mm	130,0 mm	21,0 mm	27,0 mm	10,0 mm	37,0 mm	M6
203560 10x130	HSK 63	10,0 mm	130,0 mm	24,0 mm	32,0 mm	10,0 mm	42,0 mm	M8x1
203560 12x130	HSK 63	12,0 mm	130,0 mm	24,0 mm	32,0 mm	10,0 mm	48,0 mm	M10x1
203560 14x130	HSK 63	14,0 mm	130,0 mm	27,0 mm	34,0 mm	10,0 mm	48,0 mm	M10x1
203560 16x130	HSK 63	16,0 mm	130,0 mm	27,0 mm	34,0 mm	10,0 mm	51,0 mm	M12x1
203560 18x130	HSK 63	18,0 mm	130,0 mm	33,0 mm	42,0 mm	10,0 mm	51,0 mm	M12x1
203560 20x130	HSK 63	20,0 mm	130,0 mm	33,0 mm	42,0 mm	10,0 mm	53,0 mm	M16x1
203560 25x130	HSK 63	25,0 mm	130,0 mm	44,0 mm	53,0 mm	10,0 mm	59,0 mm	M16x1
203560 3x160	HSK 63	3,0 mm	160,0 mm	12,0 mm	17,0 mm	-	-	-
203560 4x160	HSK 63	4,0 mm	160,0 mm	12,0 mm	17,0 mm	-	-	-
203560 5x160	HSK 63	5,0 mm	160,0 mm	12,0 mm	17,0 mm	-	-	-
203560 6x160	HSK 63	6,0 mm	160,0 mm	21,0 mm	27,0 mm	10,0 mm	37,0 mm	M5
203560 8x160	HSK 63	8,0 mm	160,0 mm	21,0 mm	27,0 mm	10,0 mm	37,0 mm	M6
203560 10x160	HSK 63	10,0 mm	160,0 mm	24,0 mm	32,0 mm	10,0 mm	42,0 mm	M8x1
203560 12x160	HSK 63	12,0 mm	160,0 mm	24,0 mm	32,0 mm	10,0 mm	48,0 mm	M10x1
203560 14x160	HSK 63	14,0 mm	160,0 mm	27,0 mm	34,0 mm	10,0 mm	48,0 mm	M10x1
203560 16x160	HSK 63	16,0 mm	160,0 mm	27,0 mm	34,0 mm	10,0 mm	51,0 mm	M12x1
203560 18x160	HSK 63	18,0 mm	160,0 mm	33,0 mm	42,0 mm	10,0 mm	51,0 mm	M12x1
203560 20x160	HSK 63	20,0 mm	160,0 mm	33,0 mm	42,0 mm	10,0 mm	53,0 mm	M16x1
203560 25x160	HSK 63	25,0 mm	160,0 mm	44,0 mm	53,0 mm	10,0 mm	59,0 mm	M16x1
203560 32x160	HSK 63	32,0 mm	160,0 mm	44,0 mm	53,0 mm	10,0 mm	63,0 mm	M16x1
203560 6x200	HSK 63	6,0 mm	200,0 mm	21,0 mm	27,0 mm	10,0 mm	37,0 mm	M5
203560 8x200	HSK 63	8,0 mm	200,0 mm	21,0 mm	27,0 mm	10,0 mm	37,0 mm	M6
203560 10x200	HSK 63	10,0 mm	200,0 mm	24,0 mm	32,0 mm	10,0 mm	42,0 mm	M8x1
203560 12x200	HSK 63	12,0 mm	200,0 mm	24,0 mm	32,0 mm	10,0 mm	48,0 mm	M10x1
203560 14x200	HSK 63	14,0 mm	200,0 mm	27,0 mm	34,0 mm	10,0 mm	48,0 mm	M10x1
203560 16x200	HSK 63	16,0 mm	200,0 mm	27,0 mm	34,0 mm	10,0 mm	51,0 mm	M12x1
203560 18x200	HSK 63	18,0 mm	200,0 mm	33,0 mm	42,0 mm	10,0 mm	51,0 mm	M12x1
203560 20x200	HSK 63	20,0 mm	200,0 mm	33,0 mm	42,0 mm	10,0 mm	53,0 mm	M16x1
203560 25x200	HSK 63	25,0 mm	200,0 mm	44,0 mm	53,0 mm	10,0 mm	59,0 mm	M16x1

Aufnahmen-Typ:	Schrumpffutter
Qualitätsklasse:	Premium
Schnittstelle:	HSK A 63 DIN 69893-A
Wuchtgüte:	G2,5 bei 25000 1/min
Inhalt:	1,00 Stück
