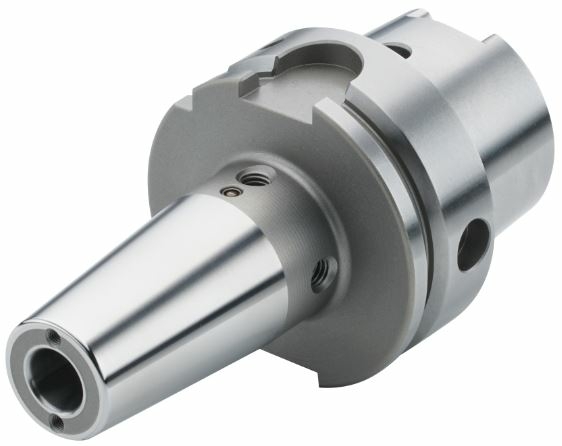

Schüssler Schrumpffutter - Cool Tool - 4,5 Grad, HSK-A 63, DIN 69893, G2,5 bei 25.000 1/min

Artikelnummer: 203600

Kategorie: HSK-A DIN 69893-A

Durchmesser
Länge Maß A

ab 133,40 €

exkl. 20% USt., zzgl. Versand

sofort verfügbar

Dieses Produkt hat Variationen. Wählen Sie bitte die gewünschte Variation aus.


Beschreibung

Ausführung:

  • Ideal geeignet für den Einsatz von Werkzeugen ohne innere Kühlmittelzufuhr sowie für die Bearbeitung an ungünstigen Stellen mit schlechter Spanabfuhr.
  • Zwei Bohrungen in der Wandung des Schrumpffutters leiten das Kühlmittel direkt an die Werkzeugschneide.

Lieferumfang:

  • 1 Werkzeugaufnahme
  • 1 eingebaute Längeneinstellschraube
  • 2 M3-Schrauben zum Verschließen der >Cool Tool<-Bohrungen bei Bedarf.

Abmessungen:

Artikel Nr. HSK D1 A D2 D3 V L M
203600 10x70 HSK 63 10,0 mm 70,0 mm 26,0 mm 33,0 mm - 42,0 mm -
203600 12x70 HSK 63 12,0 mm 70,0 mm 26,0 mm 33,0 mm - 48,0 mm -
203600 16x75 HSK 63 16,0 mm 75,0 mm 29,0 mm 37,0 mm - 51,0 mm -
203600 20x75 HSK 63 20,0 mm 75,0 mm 35,0 mm 43,0 mm - 53,0 mm -
203600 25x85 HSK 63 25,0 mm 85,0 mm 45,0 mm 50,0 mm - 59,0 mm -
203600 3x80 HSK 63 3,0 mm 80,0 mm 12,0 mm 17,0 mm - - -
203600 4x80 HSK 63 4,0 mm 80,0 mm 12,0 mm 17,0 mm - - -
203600 5x80 HSK 63 5,0 mm 80,0 mm 12,0 mm 17,0 mm - - -
203600 6x80 HSK 63 6,0 mm 80,0 mm 21,0 mm 27,0 mm 10,0 mm 37,0 mm M5
203600 8x80 HSK 63 8,0 mm 80,0 mm 21,0 mm 27,0 mm 10,0 mm 37,0 mm M6
203600 10x85 HSK 63 10,0 mm 85,0 mm 24,0 mm 32,0 mm 10,0 mm 42,0 mm M8x1
203600 12x90 HSK 63 12,0 mm 90,0 mm 24,0 mm 32,0 mm 10,0 mm 48,0 mm M10x1
203600 14x90 HSK 63 14,0 mm 90,0 mm 27,0 mm 34,0 mm 10,0 mm 48,0 mm M10x1
203600 16x95 HSK 63 16,0 mm 95,0 mm 27,0 mm 34,0 mm 10,0 mm 51,0 mm M12x1
203600 18x95 HSK 63 18,0 mm 95,0 mm 33,0 mm 42,0 mm 10,0 mm 51,0 mm M12x1
203600 20x100 HSK 63 20,0 mm 100,0 mm 33,0 mm 42,0 mm 10,0 mm 53,0 mm M16x1
203600 25x115 HSK 63 25,0 mm 115,0 mm 44,0 mm 53,0 mm 10,0 mm 59,0 mm M16x1
203600 6x120 HSK 63 6,0 mm 120,0 mm 21,0 mm 27,0 mm 10,0 mm 37,0 mm M5
203600 8x120 HSK 63 8,0 mm 120,0 mm 21,0 mm 27,0 mm 10,0 mm 37,0 mm M6
203600 10x120 HSK 63 10,0 mm 120,0 mm 24,0 mm 32,0 mm 10,0 mm 42,0 mm M8x1
203600 12x120 HSK 63 12,0 mm 120,0 mm 24,0 mm 32,0 mm 10,0 mm 48,0 mm M10x1
203600 14x120 HSK 63 14,0 mm 120,0 mm 27,0 mm 34,0 mm 10,0 mm 48,0 mm M10x1
203600 16x120 HSK 63 16,0 mm 120,0 mm 27,0 mm 34,0 mm 10,0 mm 51,0 mm M12x1
203600 18x120 HSK 63 18,0 mm 120,0 mm 33,0 mm 42,0 mm 10,0 mm 51,0 mm M12x1
203600 20x120 HSK 63 20,0 mm 120,0 mm 33,0 mm 42,0 mm 10,0 mm 53,0 mm M16x1
203600 3x130 HSK 63 3,0 mm 130,0 mm 12,0 mm 17,0 mm - - -
203600 40x130 HSK 63 40 mm 130,0 mm 12,0 mm 17,0 mm - - -
203600 5x130 HSK 63 5,0 mm 130,0 mm 12,0 mm 17,0 mm - - -
203600 6x130 HSK 63 6,0 mm 130,0 mm 21,0 mm 27,0 mm 10,0 mm 37,0 mm M5
203600 8x130 HSK 63 8,0 mm 130,0 mm 21,0 mm 27,0 mm 10,0 mm 37,0 mm M6
203600 10x130 HSK 63 10,0 mm 130,0 mm 24,0 mm 32,0 mm 10,0 mm 42,0 mm M8x1
203600 12x130 HSK 63 12,0 mm 130,0 mm 24,0 mm 32,0 mm 10,0 mm 48,0 mm M10x1
203600 14x130 HSK 63 14,0 mm 130,0 mm 27,0 mm 34,0 mm 10,0 mm 48,0 mm M10x1
203600 16x130 HSK 63 16,0 mm 130,0 mm 27,0 mm 34,0 mm 10,0 mm 51,0 mm M12x1
203600 18x130 HSK 63 18,0 mm 130,0 mm 33,0 mm 42,0 mm 10,0 mm 51,0 mm M12x1
203600 20x130 HSK 63 20,0 mm 130,0 mm 33,0 mm 42,0 mm 10,0 mm 53,0 mm M16x1
203600 25x130 HSK 63 25,0 mm 130,0 mm 44,0 mm 53,0 mm 10,0 mm 59,0 mm M16x1
203600 32x130 HSK 63 32,0 mm 130,0 mm 44,0 mm 53,0 mm 10,0 mm 63,0 mm M16x1

Aufnahmen-Typ: Schrumpffutter
Qualitätsklasse: Premium
Schnittstelle: HSK A 63 DIN 69893-A
Wuchtgüte: G2,5 bei 25000 1/min
Inhalt: 1,00 Stück
