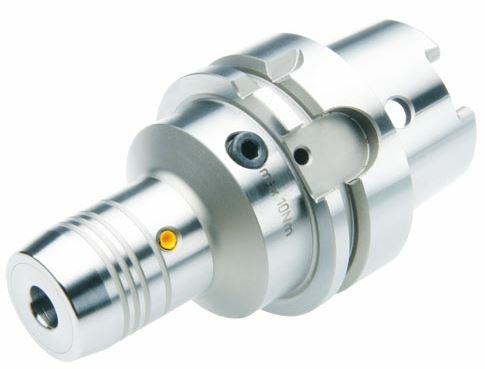

Hydrodehnspannfutter HSK-A 100, DIN 69893, G6,3 bei 15.000 1/min
Beschreibung
Ausführung:
- Zur Aufnahme von Werkzeugen mit Zylinderschaft nach DIN 1835 Form A+B+E und DIN 6535 Form HA+HB+HE.
- Rundlaufabweichung: max. 0,003 mm
Lieferumfang:
- 1 Werkzeugaufnahme
- 1 Spannschlüssel
Abmessungen:
| Artikel Nr.
| HSK | d | A | D | D1 | max. Einstecktiefe | max. Verstellweg | l3 |
| 203680 6x85 | HSK-A 100 | 6,0 mm | 85,0 mm | 26,0 mm | 63,0 mm | 37,0 mm | 10,0 mm | 56,0 mm |
| 203680 8x85 | HSK-A 100 | 8,0 mm | 85,0 mm | 28,0 mm | 63,0 mm | 37,0 mm | 10,0 mm | 56,0 mm |
| 203680 10x90 | HSK-A 100 | 10,0 mm | 90,0 mm | 30,0 mm | 63,0 mm | 42,0 mm | 10,0 mm | 55,0 mm |
| 203680 12x95 | HSK-A 100 | 12,0 mm | 95,0 mm | 32,0 mm | 63,0 mm | 47,0 mm | 10,0 mm | 55,0 mm |
| 203680 14x95 | HSK-A 100 | 14,0 mm | 95,0 mm | 34,0 mm | 63,0 mm | 47,0 mm | 10,0 mm | 53,0 mm |
| 203680 16x100 | HSK-A 100 | 16,0 mm | 100,0 mm | 38,0 mm | 63,0 mm | 52,0 mm | 10,0 mm | 53,0 mm |
| 203680 18x100 | HSK-A 100 | 18,0 mm | 100,0 mm | 40,0 mm | 63,0 mm | 52,0 mm | 10,0 mm | 52,0 mm |
| 203680 20x105 | HSK-A 100 | 20,0 mm | 105,0 mm | 42,0 mm | 63,0 mm | 52,0 mm | 10,0 mm | 51,0 mm |
| 203680 25x115 | HSK-A 100 | 25,0 mm | 115,0 mm | 50,0 mm | 63,0 mm | 58,0 mm | 10,0 mm | 64,0 mm |
| 203680 32x120 | HSK-A 100 | 32,0 mm | 120,0 mm | 60,0 mm | 63,0 mm | 62,0 mm | 10,0 mm | 61,0 mm |
| 203680 6x150 | HSK-A 100 | 6,0 mm | 150,0 mm | 26,0 mm | 50,0 mm | 37,0 mm | 10,0 mm | 56,0 mm |
| 203680 8x150 | HSK-A 100 | 8,0 mm | 150,0 mm | 28,0 mm | 50,0 mm | 37,0 mm | 10,0 mm | 55,5 mm |
| 203680 10x150 | HSK-A 100 | 10,0 mm | 150,0 mm | 30,0 mm | 50,0 mm | 42,0 mm | 10,0 mm | 55,0 mm |
| 203680 12x150 | HSK-A 100 | 12,0 mm | 150,0 mm | 32,0 mm | 50,0 mm | 47,0 mm | 10,0 mm | 54,5 mm |
| 203680 14x150 | HSK-A 100 | 14,0 mm | 150,0 mm | 34,0 mm | 50,0 mm | 47,0 mm | 10,0 mm | 53,0 mm |
| 203680 16x150 | HSK-A 100 | 16,0 mm | 150,0 mm | 38,0 mm | 50,0 mm | 52,0 mm | 10,0 mm | 52,5 mm |
| 203680 18x150 | HSK-A 100 | 18,0 mm | 150,0 mm | 40,0 mm | 50,0 mm | 52,0 mm | 10,0 mm | 52,0 mm |
| 203680 20x150 | HSK-A 100 | 20,0 mm | 150,0 mm | 42,0 mm | 50,0 mm | 52,0 mm | 10,0 mm | 51,0 mm |
| 203680 25x150 | HSK-A 100 | 25,0 mm | 150,0 mm | 50,0 mm | 50,0 mm | 58,0 mm | 10,0 mm | - |
| 203680 32x150 | HSK-A 100 | 32,0 mm | 150,0 mm | 60,0 mm | 60,0 mm | 62,0 mm | 10,0 mm | - |
| 203680 6x200 | HSK-A 100 | 6,0 mm | 200,0 mm | 26,0 mm | 50,0 mm | 37,0 mm | 10,0 mm | 56,0 mm |
| 203680 8x200 | HSK-A 100 | 8,0 mm | 200,0 mm | 28,0 mm | 50,0 mm | 37,0 mm | 10,0 mm | 55,5 mm |
| 203680 10x200 | HSK-A 100 | 10,0 mm | 200,0 mm | 30,0 mm | 50,0 mm | 42,0 mm | 10,0 mm | 55,0 mm |
| 203680 12x200 | HSK-A 100 | 12,0 mm | 200,0 mm | 32,0 mm | 50,0 mm | 47,0 mm | 10,0 mm | 54,5 mm |
| 203680 14x200 | HSK-A 100 | 14,0 mm | 200,0 mm | 34,0 mm | 50,0 mm | 47,0 mm | 10,0 mm | 53,0 mm |
| 203680 16x200 | HSK-A 100 | 16,0 mm | 200,0 mm | 38,0 mm | 50,0 mm | 52,0 mm | 10,0 mm | 52,5 mm |
| 203680 18x200 | HSK-A 100 | 18,0 mm | 200,0 mm | 40,0 mm | 50,0 mm | 52,0 mm | 10,0 mm | 52,0 mm |
| 203680 20x200 | HSK-A 100 | 20,0 mm | 200,0 mm | 42,0 mm | 50,0 mm | 52,0 mm | 10,0 mm | 51,0 mm |
| 203680 25x200 | HSK-A 100 | 25,0 mm | 200,0 mm | 50,0 mm | 50,0 mm | 58,0 mm | 10,0 mm | - |
| 203680 32x200 | HSK-A 100 | 32,0 mm | 200,0 mm | 60,0 mm | 60,0 mm | 62,0 mm | 10,0 mm | - |
