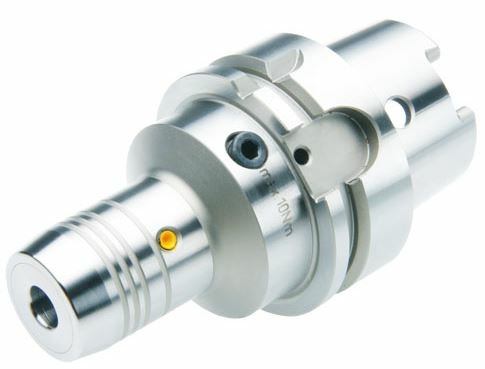

Hydrodehnspannfutter HSK-A 63, DIN 69893, G6,3 bei 15.000 1/min
Beschreibung
Ausführung:
- Zur Aufnahme von Werkzeugen mit Zylinderschaft nach DIN 1835 Form A+B+E und DIN 6535 Form HA+HB+HE
- Rundlaufabweichung: max. 0,003 mm
Lieferumfang:
- 1 Werkzeugaufnahme
- 1 Spannschlüssel
Abmessungen:
| Artikel Nr.
| HSK | d | A | D | D1 | max. Einstecktiefe
| max. Verstellweg | l3 |
| 203670 6x80 | HSK-A 63 | 6,0 mm | 80,0 mm | 26,0 mm | 50,0 mm | 37,0 mm | 10,0 mm | 47,0 mm |
| 203670 8x80 | HSK-A 63 | 8,0 mm | 80,0 mm | 28,0 mm | 50,0 mm | 37,0 mm | 10,0 mm | 47,0 mm |
| 203670 10x85 | HSK-A 63 | 10,0 mm | 85,0 mm | 30,0 mm | 50,0 mm | 42,0 mm | 10,0 mm | 46,0 mm |
| 203670 12x90 | HSK-A 63 | 12,0 mm | 90,0 mm | 32,0 mm | 50,0 mm | 47,0 mm | 10,0 mm | 46,0 mm |
| 203670 14x90 | HSK-A 63 | 14,0 mm | 90,0 mm | 34,0 mm | 50,0 mm | 47,0 mm | 10,0 mm | 44,0 mm |
| 203670 16x95 | HSK-A 63 | 16,0 mm | 95,0 mm | 38,0 mm | 50,0 mm | 52,0 mm | 10,0 mm | 43,0 mm |
| 203670 18x95 | HSK-A 63 | 18,0 mm | 95,0 mm | 40,0 mm | 50,0 mm | 52,0 mm | 10,0 mm | 43,0 mm |
| 203670 20x100 | HSK-A 63 | 20,0 mm | 100,0 mm | 42,0 mm | 50,0 mm | 52,0 mm | 10,0 mm | 42,0 mm |
| 203670 25x120 | HSK-A 63 | 25,0 mm | 120,0 mm | 50,0 mm | 50,0 mm | 58,0 mm | 10,0 mm | 26,0 mm |
| 203670 32x125 | HSK-A 63 | 32,0 mm | 125,0 mm | 60,0 mm | 50,0 mm | 62,0 mm | 10,0 mm | 42,0 mm |
| 203670 6x150 | HSK-A 63 | 6,0 mm | 150,0 mm | 26,0 mm | 50,0 mm | 37,0 mm | 10,0 mm | 47,0 mm |
| 203670 8x150 | HSK-A 63 | 8,0 mm | 150,0 mm | 28,0 mm | 50,0 mm | 37,0 mm | 10,0 mm | 46,0 mm |
| 203670 10x150 | HSK-A 63 | 10,0 mm | 150,0 mm | 30,0 mm | 50,0 mm | 42,0 mm | 10,0 mm | 46,0 mm |
| 203670 12x150 | HSK-A 63 | 12,0 mm | 150,0 mm | 32,0 mm | 50,0 mm | 47,0 mm | 10,0 mm | 45,0 mm |
| 203670 14x150 | HSK-A 63 | 14,0 mm | 150,0 mm | 34,0 mm | 50,0 mm | 47,0 mm | 10,0 mm | 45,0 mm |
| 203670 16x150 | HSK-A 63 | 16,0 mm | 150,0 mm | 38,0 mm | 50,0 mm | 52,0 mm | 10,0 mm | 43,5 mm |
| 203670 18x150 | HSK-A 63 | 18,0 mm | 150,0 mm | 40,0 mm | 50,0 mm | 52,0 mm | 10,0 mm | 43,0 mm |
| 203670 20x150 | HSK-A 63 | 20,0 mm | 150,0 mm | 42,0 mm | 50,0 mm | 52,0 mm | 10,0 mm | 42,0 mm |
| 203670 25x150 | HSK-A 63 | 25,0 mm | 150,0 mm | 50,0 mm | 50,0 mm | 58,0 mm | 10,0 mm | - |
| 203670 6x200 | HSK-A 63 | 6,0 mm | 200,0 mm | 26,0 mm | 50,0 mm | 37,0 mm | 10,0 mm | 47,0 mm |
| 203670 8x200 | HSK-A 63 | 8,0 mm | 200,0 mm | 28,0 mm | 50,0 mm | 37,0 mm | 10,0 mm | 46,0 mm |
| 203670 10x200 | HSK-A 63 | 10,0 mm | 200,0 mm | 30,0 mm | 50,0 mm | 42,0 mm | 10,0 mm | 46,0 mm |
| 203670 12x200 | HSK-A 63 | 12,0 mm | 200,0 mm | 32,0 mm | 50,0 mm | 47,0 mm | 10,0 mm | 45,0 mm |
| 203670 14x200 | HSK-A 63 | 14,0 mm | 200,0 mm | 34,0 mm | 50,0 mm | 47,0 mm | 10,0 mm | 45,0 mm |
| 203670 16x200 | HSK-A 63 | 16,0 mm | 200,0 mm | 38,0 mm | 50,0 mm | 52,0 mm | 10,0 mm | 43,5 mm |
| 203670 18x200 | HSK-A 63 | 18,0 mm | 200,0 mm | 40,0 mm | 50,0 mm | 52,0 mm | 10,0 mm | 43,0 mm |
| 203670 20x200 | HSK-A 63 | 20,0 mm | 200,0 mm | 42,0 mm | 50,0 mm | 52,0 mm | 10,0 mm | 42,0 mm |
| 203670 25x200 | HSK-A 63 | 25,0 mm | 200,0 mm | 50,0 mm | 50,0 mm | 58,0 mm | 10,0 mm | - |
