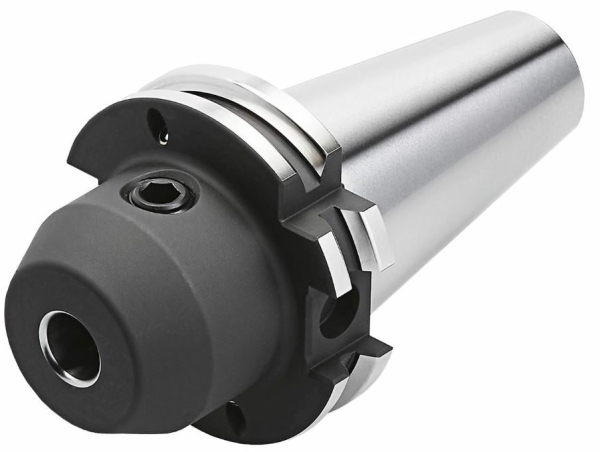

Weldon Spannfutter SK 50, DIN 69871, Form AD/B, G6,3 bei 15.000 1/min
Weldon Spannfutter SK 50, DIN 69871, Form AD/B, G6,3 bei 15.000 1/min

Artikelnummer: 200050

Kategorie: Steilkegel DIN 69871

Durchmesser
Länge Maß A

ab 52,79 €

exkl. 20% USt., zzgl. Versand

sofort verfügbar

Dieses Produkt hat Variationen. Wählen Sie bitte die gewünschte Variation aus.


Beschreibung

Ausführung:

  • Zum Spannen von zylindrischen Werkzeugschäften mit seitlicher Spannfläche (nach DIN 1835 Form B)
  • Rundlaufgenauigkeit = 0,003 mm

Lieferumfang:

  • 1 Werkzeugaufnahme
  • 1 Spannschraube (ab d = 25 mm mit zwei Spannschrauben)

Abmessungen:

Artikel Nr. SKdAD
200050 6x63SK506,0 mm63,0 mm25,0 mm
200050 8x63SK508,0 mm63,0 mm28,0 mm
200050 10x63SK5010,0 mm63,0 mm35,0 mm
200050 12x63SK5012,0 mm63,0 mm42,0 mm
200050 14x63SK5014,0 mm63,0 mm44,0 mm
200050 16x63SK5016,0 mm63,0 mm48,0 mm
200050 18x63SK5018,0 mm63,0 mm50,0 mm
200050 20x63SK5020,0 mm63,0 mm52,0 mm
200050 25x80SK5025,0 mm80,0 mm65,0 mm
200050 32x100SK5032,0 mm100,0 mm72,0 mm
200050 40x100SK5040,0 mm100,0 mm80,0 mm
200050 6x100SK506,0 mm100,0 mm25,0 mm
200050 8x100SK508,0 mm100,0 mm28,0 mm
200050 10x100SK5010,0 mm100,0 mm35,0 mm
20005012x100SK5012,0 mm100,0 mm42,0 mm
200050 14x100SK5014,0 mm100,0 mm44,0 mm
200050 16x100SK5016,0 mm100,0 mm48,0 mm
200050 18x100SK5018,0 mm100,0 mm50,0 mm
200050 20x100SK5020,0 mm100,0 mm52,0 mm
200050 25x120SK5025,0 mm120,0 mm65,0 mm
200050 6x160SK506,0 mm160,0 mm25,0 mm
200050 8x160SK508,0 mm160,0 mm28,0 mm
200050 10x160SK5010,0 mm160,0 mm35,0 mm
200050 12x160SK5012,0 mm160,0 mm42,0 mm
200050 14x160SK5014,0 mm160,0 mm44,0 mm
200050 16x160SK5016,0 mm160,0 mm48,0 mm
200050 18x160SK5018,0 mm160,0 mm50,0 mm
200050 20x160SK5020,0 mm160,0 mm52,0 mm
200050 25x160SK5025,0 mm160,0 mm65,0 mm
200050 32x160SK5032,0 mm160,0 mm72,0 mm
200050 40x160SK5040,0 mm160,0 mm80,0 mm

Aufnahmen-Typ: Weldon
Qualitätsklasse: Pro-Line
Schnittstelle: SK 50 DIN 69871
Wuchtgüte: G6,3 bei 15000 1/min
Form: Form AD/B
Inhalt:1,00 Stück
